SKU Code
100TH
Bar Code
5022456315205
Brand
Pack Type
Unit
Pack Qty
1
Material
Carbon Steel
Finish
Galvanised
Corrosion Rating (1-5)
2 - Occasionally damp/wet, rural and sheltered areas
MOQ
10
MOQ Increment
10
Packs per Carton
10
Pack Dimensions L x W x H (mm)
60 x 100 x 278
Pack Weight (kg)
0.220
Approval
BS 5628
Type
No Tag
W (mm)
100
T (mm)
0.8
Nail Holes (3.75mm)
23
Service Class
2
B (mm)
60
Characteristic Value (kN) For Eurocode 5
14.41
Joist Size W x H (mm)
100 x 125 to 220
Eurocode
5
Safe Working For BS5268 (kN) Short Term
7.21
Safe Working For BS5268 (kN) Medium Term
6.86
Safe Working For BS5268 (kN) Long Term
6.0
Leg L (mm)
278

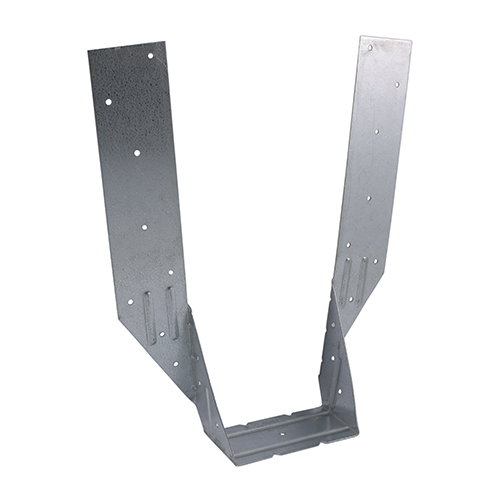

TimcoThe TIMco Timber Hanger range has been designed to give a quick and simple solution for various timber to timber connections such as joists and stairwell trimming. The superior design allows the use of fewer nails for faster installation. All widths can take up to a 220mm deep joist. Manufactured from Pre-Galvanised Steel to give a high level of corrosion resistance.
