SKU Code
748023P
Bar Code
5056110872100
Brand
Pack Type
TIMpac
Pack Qty
102
Material
Austenitic Stainless Steel (A2-304)
Corrosion Rating (1-5)
4 - Urban &
MOQ
1
MOQ Increment
1
Head Type
Dome
Packs per Carton
10
Pack Dimensions L x W x H (mm)
15 X 90 X 198
Pack Weight (kg)
0.14
Substrates
Steel, Aluminium, Stainless Steel, Hard Plastic, Corrosive Wood (e.g. Oak, Cedar)
Pack Quantity Unit
Pieces
DIN
DIN 7337
Head Ĝ (mm)
3.2
Drill Hole Ĝ (mm)
3.3
Head Ĝ x L (mm)
3.2 x 6
Head L (mm)
6
Collar Ĝ (mm)
6.5
Collar Thickness (mm)
0.8
Mandrel Ĝ (mm)
1.95
Mandrel L (mm)
27
Min. Grip Range (mm)
1.0
Max. Grip Range (mm)
3.0

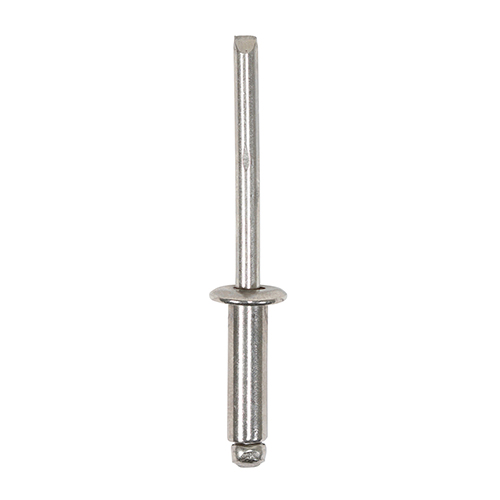

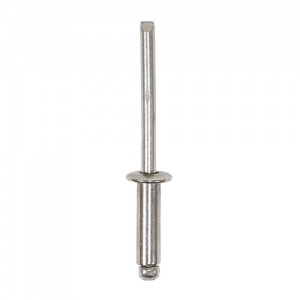

Ideal for sheet to sheet applications where welding and bolting is not possible. During installation the head forms a secure fixing whilst maintaining an aesthetic and low profile finish. The A2 stainless steel body ensures consistent performance and ultimate resistance to corrosion. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
