SKU Code
44THMS
Bar Code
5022456321909
Brand
Pack Type
Unit
Pack Qty
1
Material
Austenitic Stainless Steel (A2-304)
Corrosion Rating (1-5)
4 - Urban &
MOQ
10
MOQ Increment
10
Packs per Carton
10
Pack Dimensions L x W x H (mm)
50 x 44 x 97
Pack Weight (kg)
0.120
Approval
BS 5628
Type
Mini
W (mm)
44
T (mm)
1.0
Nail Holes (3.75mm)
20
Service Class
3
H (mm)
97
B (mm)
50
Characteristic Value (kN) For Eurocode 5
9.5
Joist Size W x H (mm)
44 x 75 to 100
Eurocode
5
Safe Working For BS5268 (kN) Short Term
4.75
Safe Working For BS5268 (kN) Medium Term
4.53
Safe Working For BS5268 (kN) Long Term
3.96

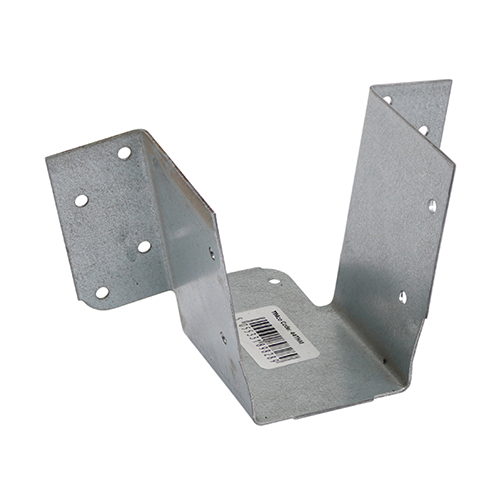

Designed to give a small and economic light weight timber to timber connection such as loft hatches and decking. Timber to timber joist hangers are suitable for light duty applications such as ceiling joists, decking and trimmers. NOTE: Tag on base of the hanger helps avoid rotation.
Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
