SKU Code
47THS
Bar Code
5022456321930
Brand
Pack Type
Unit
Pack Qty
1
Material
Austenitic Stainless Steel (A2-304)
Corrosion Rating (1-5)
4 - Urban &
MOQ
20
MOQ Increment
20
Packs per Carton
20
Pack Dimensions L x W x H (mm)
75 x 47 x 277
Pack Weight (kg)
0.220
Approval
BS 5628
Type
Standard
W (mm)
47
T (mm)
1.0
Nail Holes (3.75mm)
32
Service Class
3
B (mm)
50
Characteristic Value (kN) For Eurocode 5
14.41
Joist Size W x H (mm)
47 x 100 to 225
Eurocode
5
Safe Working For BS5268 (kN) Short Term
7.72
Safe Working For BS5268 (kN) Medium Term
7.35
Safe Working For BS5268 (kN) Long Term
6.43
Leg L (mm)
277

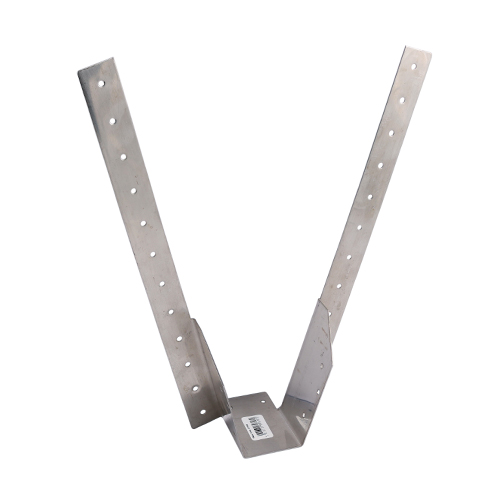

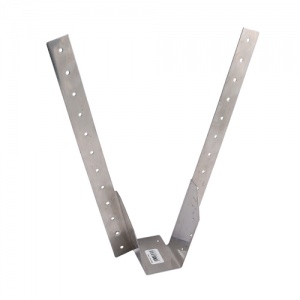

The TIMco Timber Hanger range has been designed as simple solution for various timber to timber connections such as joists and stairwell trimming. They have increased leg lengths so that all widths can take up to a 225mm deep joist.
Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
