SKU Code
47200MH
Bar Code
5022456317391
Brand
Pack Type
Unit
Pack Qty
1
Material
Carbon Steel
Finish
Galvanised
Corrosion Rating (1-5)
2 - Occasionally damp/wet, rural and sheltered areas
MOQ
10
MOQ Increment
10
Packs per Carton
10
Pack Dimensions L x W x H (mm)
75 x 47 x 190
Pack Weight (kg)
0.510
Approval
BS 5628
Type
Single Piece
W (mm)
47
T (mm)
2.4
Nail Holes (3.75mm)
6
Service Class
2
CE Standard
BS EN 845-1:2013
H (mm)
190
B (mm)
75
Safe Working Load (kN)
5.4
Characteristic Value (kN) For Eurocode 5
9.7
Joist Size W x H (mm)
47 x 200
Eurocode
6

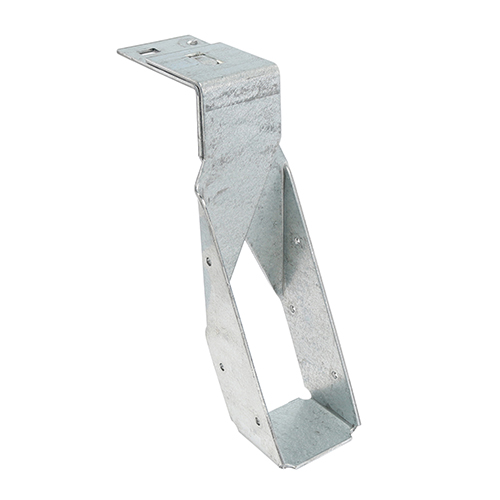

The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.
