SKU Code
47240MMFH
Bar Code
5022456317575
Brand
Pack Type
Unit
Pack Qty
1
Material
Carbon Steel
Finish
Galvanised
Corrosion Rating (1-5)
2 - Occasionally damp/wet, rural and sheltered areas
MOQ
10
MOQ Increment
10
Packs per Carton
10
Pack Dimensions L x W x H (mm)
85 x 47 x 97
Pack Weight (kg)
0.240
Approval
BS 5628
Total L (mm)
240
Type
Multi-Functional
W (mm)
47
T (mm)
1.6
Service Class
2
H (mm)
97
B (mm)
85
Characteristic Value (kN) For Eurocode 5
12.8
Eurocode
5

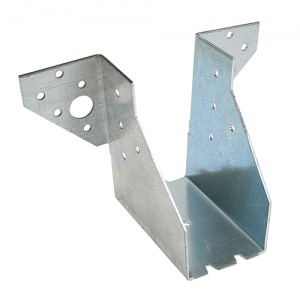

TIMco’s Multi-Functional Hangers are designed for applications where additional strength is required or where access to the top of the timber or steel is not available. Designed for use with different fixings to give greater flexibility and improved performance. Manufactured from Pre-Galvanised Steel to give a high level of corrosion resistance. NOTE: Overall length refers to the length of the hanger when laid flat.
