SKU Code
748735
Bar Code
5056110829159
Brand
Pack Type
Box
Pack Qty
250
Pallet Qty (pcs)
90,000
Material
Aluminium
Finish
Zinc &
Corrosion Rating (1-5)
3 - Urban &
MOQ
1
MOQ Increment
1
Head Type
Flange
Packs per Carton
10
Packs per Pallet
360
Pack Dimensions L x W x H (mm)
118 x 110 x 100
Pack Weight (kg)
0.899
Substrates
Steel, Aluminium, Hard Plastic, PVCu
Pack Quantity Unit
Pieces
DIN
DIN 7337
Head Ĝ (mm)
4.8
Drill Hole Ĝ (mm)
4.9
Head Ĝ x L (mm)
4.8 x 16
Head L (mm)
16
Collar Ĝ (mm)
14.0
Collar Thickness (mm)
2.5
Mandrel Ĝ (mm)
2.70
Mandrel L (mm)
27
Min. Grip Range (mm)
10.0
Max. Grip Range (mm)
12.0

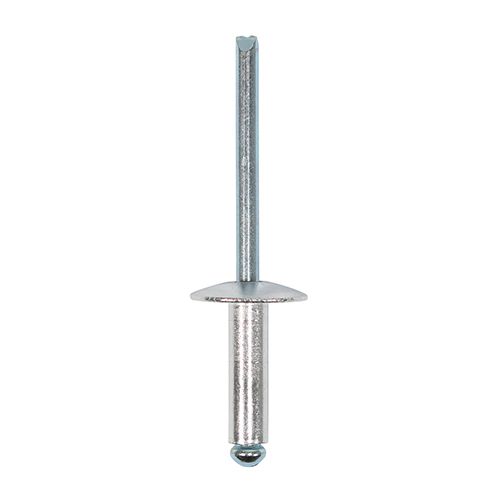

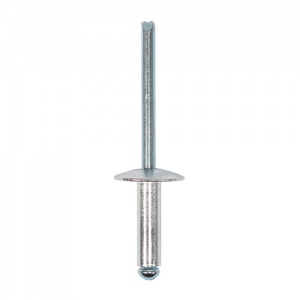

Ideal for heavy duty sheet to sheet applications where welding and bolting is not possible an increased clamping force is required. During installation the head forms a secure fixing whilst maintaining an aesthetic and low profile finish. The aluminium body ensures consistent performance and an enhanced resistance to corrosion.
