SKU Code
CFX024T
Bar Code
5056110852249
Brand
Pack Type
Box
Pack Qty
24
Recess Type
Pozi
Pallet Qty (pcs)
9,600
Material
Carbon Steel Screw, Impact Resistant PP Copolymer Plug, Carbon Steel Core
Finish
Zinc
Corrosion Rating (1-5)
1 - Clean, dry &
MOQ
1
MOQ Increment
1
Driver Bit Size
PZ2
Head Type
Countersunk
Packs per Carton
10
Packs per Pallet
400
Pack Dimensions L x W x H (mm)
148 x 93 x 76
Pack Weight (kg)
0.530
Substrates
Brick, Block, Stone
Carton Qty (pcs)
240
Pack Quantity Unit
Pieces
Drill Hole Ĝ (mm)
10.0
Min. Drill Hole Depth (mm)
100
MFT (mm)
10
Plug L (mm)
95
Screw Size (mm)
5.0 x 100
Plug Ĝ (mm)
10
Plug Size (mm)
10 x 95
Core Insert Ĝ x L (mm)
8.0 x 50
Drill Bit Size (mm)
-

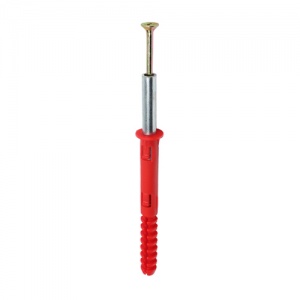

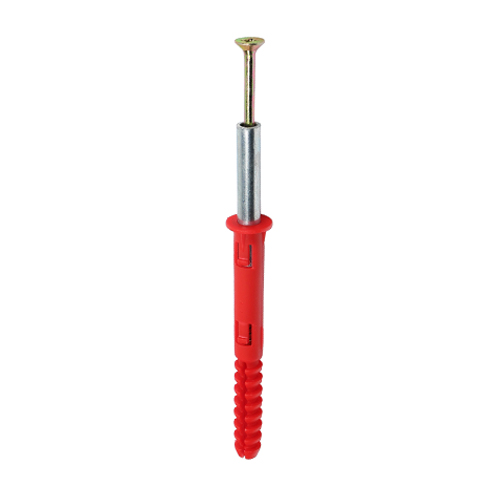

This highly effective and innovative product was developed to safely secure heavy loads including cabinets and brackets to dot and dab plasterboard walls or board supported on battens. Quick to install, this patented product works by securing the load to the brick or block behind the board, bridging the problematic gap that dot and dab creates, by way of a zinc plated steel tube insert.
