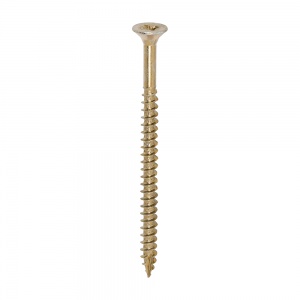

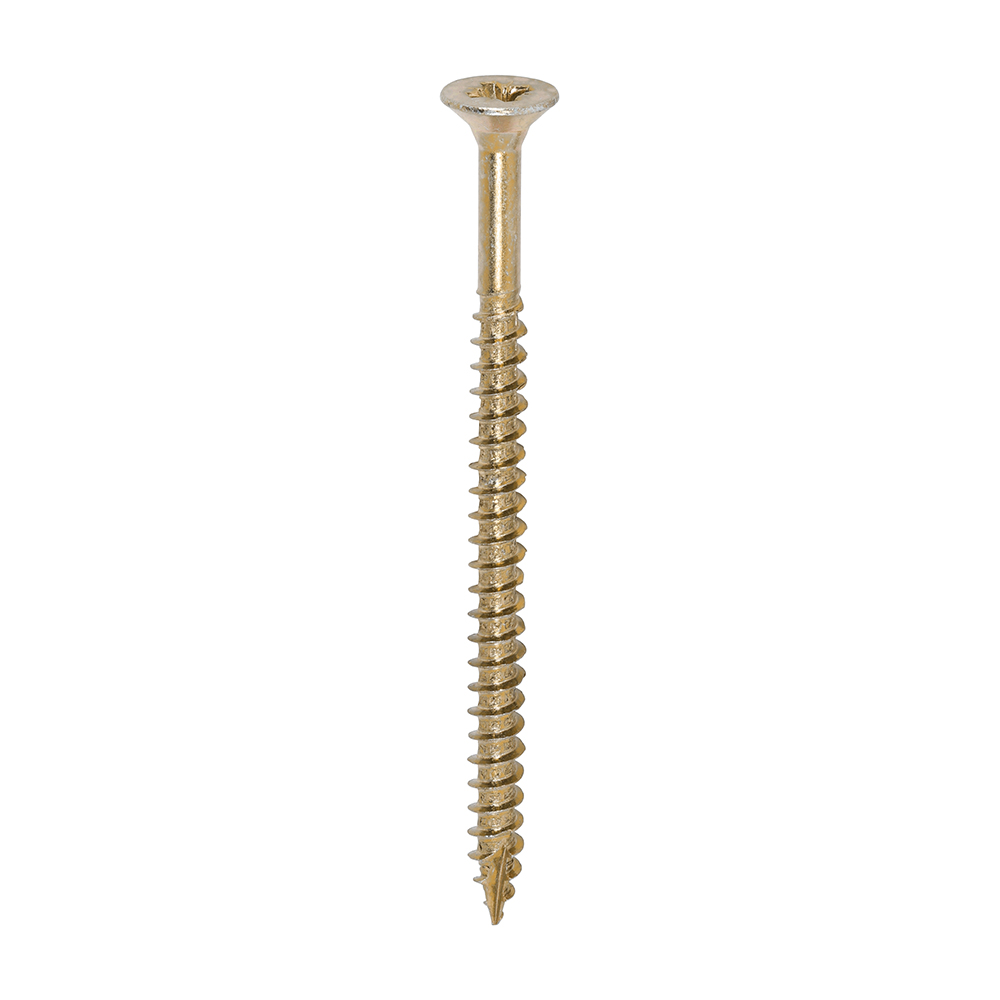

6.0 x 90 Classic Screw PZ3 CSK ZYP 100 PCS
6.0 x 90 Classic Screw PZ3 CSK ZYP 100 PCS
6.0 x 90 Classic Screw PZ3 CSK ZYP 100 PCS

6.0 x 90 Classic Screw PZ3 CSK ZYP 100 PCS

£7.90
(Inc. 20% VAT)
In stock, immediate dispatch
–
+
Double countersunk reduces the likelihood of head shear and assists completion of countersinking
Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
40° deep single thread to provide a secure fixing with high pull-out resistance
Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Specification
SKU Code
60090CLAF
Bar Code
5055017507573
Brand
Timco
Pack Type
Box
Pack Qty
100
Recess Type
Pozi
Material
Carbon Steel
Finish
Zinc &
Corrosion Rating (1-5)
2 - Occasionally damp/wet, rural and sheltered areas
Salt Spray Resistance (Hrs) Tested to BS EN 9227
504
MOQ
1
MOQ Increment
1
Driver Bit Size
PZ3
Head Type
Double Countersunk
Point Type
25° Sharp with Single Slash
Size (mm)
6.0 x 90
Thread Type
Single Coarse 40°
Packs per Carton
15
Pack Dimensions L x W x H (mm)
135 x 90 x 60
Pack Weight (kg)
1.100
Thread Ĝ (mm)
6.0
Substrates
Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
L (mm)
90
Head Ĝ (mm)
11.57
Thread L (mm)
70
Lubrication
Gleitmo
Timco

Timco
Information

Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power.
