SKU Code
76450LTH
Bar Code
5022456313300
Brand
Pack Type
Unit
Pack Qty
1
Material
Carbon Steel
Finish
Galvanised
Corrosion Rating (1-5)
2 - Occasionally damp/wet, rural and sheltered areas
MOQ
10
MOQ Increment
10
Packs per Carton
10
Pack Dimensions L x W x H (mm)
50 x 76 x 435
Pack Weight (kg)
0.470
Approval
BS 5628
Type
Long Leg
W (mm)
76
T (mm)
1.2
Nail Holes (3.75mm)
46
Service Class
2
B (mm)
50
Characteristic Value (kN) For Eurocode 5
28.04
Joist Size W x H (mm)
76 x 150 to 250
Eurocode
5
Safe Working For BS5268 (kN) Short Term
14.02
Safe Working For BS5268 (kN) Medium Term
13.35
Safe Working For BS5268 (kN) Long Term
11.68
Leg L (mm)
435

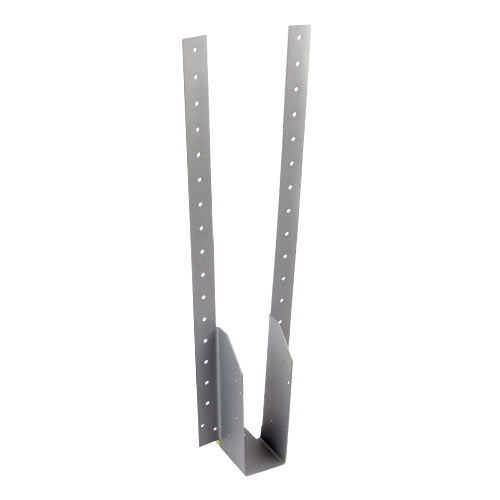

Specifically designed for deeper timber to timber applications. Ideal for loft conversions and “under-slung” floor joist applications where the hanger extends below the supporting beam. They have increase leg lengths so that all widths can take up to a 250mm deep joist. Manufactured from Pre-Galvanised Steel to give a high level of corrosion resistance.
