SKU Code
125TH
Bar Code
5022456316066
Brand
Pack Type
Unit
Pack Qty
1
Material
Carbon Steel
Finish
Galvanised
Corrosion Rating (1-5)
2 - Occasionally damp/wet, rural and sheltered areas
MOQ
10
MOQ Increment
10
Packs per Carton
10
Pack Dimensions L x W x H (mm)
50 x 125 x 33
Pack Weight (kg)
0.260
Approval
BS 5628
Type
Standard
W (mm)
125
T (mm)
1.0
Nail Holes (3.75mm)
32
Service Class
2
B (mm)
50
Characteristic Value (kN) For Eurocode 5
15.44
Joist Size W x H (mm)
125 x 100 to 225
Eurocode
5
Safe Working For BS5268 (kN) Short Term
7.72
Safe Working For BS5268 (kN) Medium Term
7.35
Safe Working For BS5268 (kN) Long Term
6.43
Leg L (mm)
300

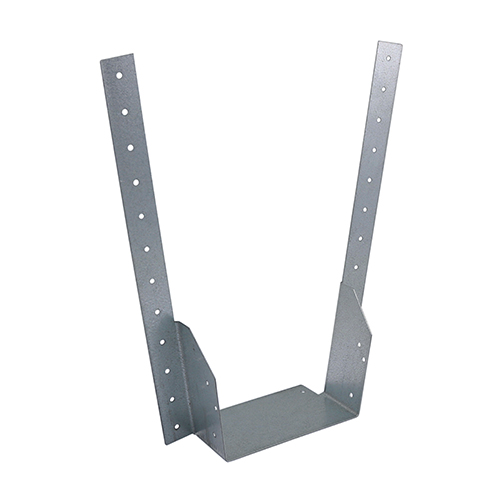

The TIMco Timber Hanger range has been designed as simple solution for various timber to timber connections such as joists and stairwell trimming. They have increased leg lengths so that all widths can take up to a 225mm deep joist. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.
